LEPAS(Lab Efficient Pretreatment Automation)
LEPAS-ACT is...
Pretreatment processes, which take about 60% of entire laboratory medicine test in hospital, is delayed and caused bottleneck due to carry by people, sort by each parts and centrifuge.

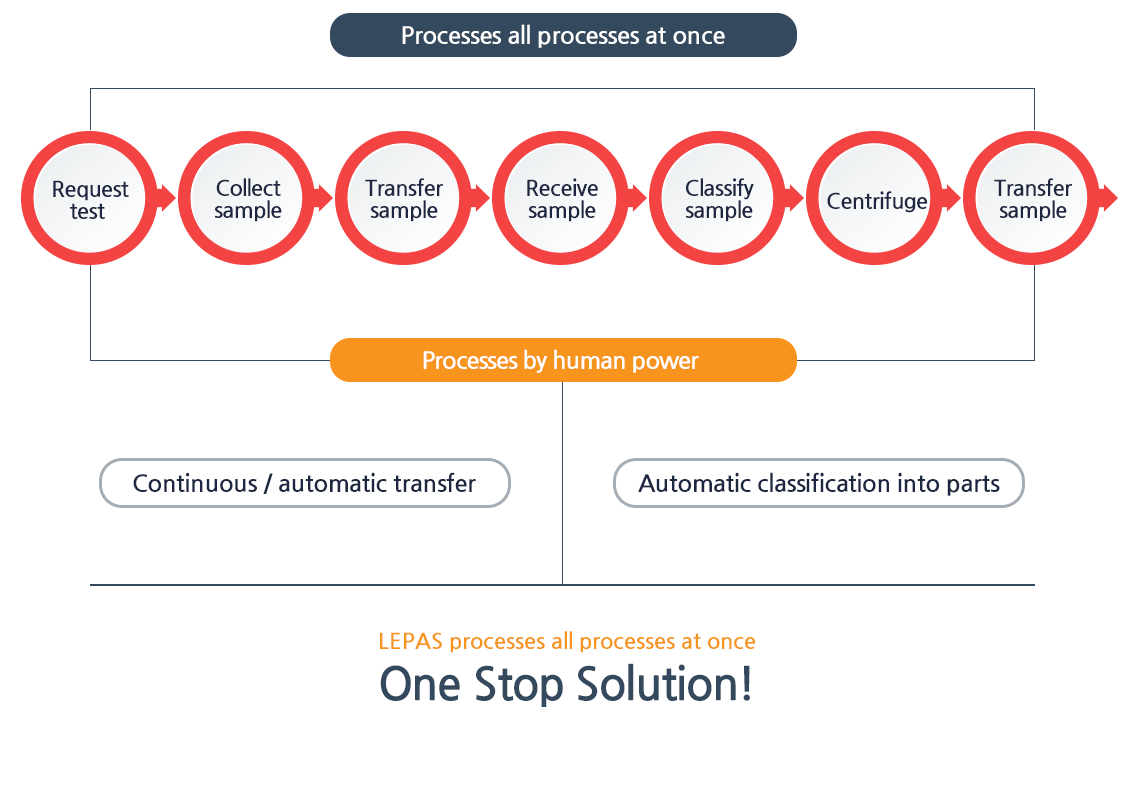

One-stop Solutionmaximizes the efficiency of all of these processes. In addition to shortening TAT, it is a system which optimizes the human resources management, maximizes the utilization of the laboratory space and enables the integrated management of stable laboratory.
-
Shorten TAT
- 6.5 times faster than throughput by manpower
- Solve the multi-step of pre-analytical processes at once
-
Build Your Own Lab
- Enable to build customized systems
- Multi line system
- Ease of movement and extension design of system
- Various sample transfer possible
-
Optimized Human Resource
- Optimize human resources operation
- Solve time-consuming problems due to sample classification
- Minimize unnecessary movement lines
-
Bottleneck resolution
- Up to 3 connectable FAC
- Rapid processing of large volume samples
- Emergency sample can be processed first
- Automated sample classification and transfer
-
Safety
- Sample traceability
- Integrated management through temperature and humidity monitoring system
-
Space Saving
- Practical ceiling-mounted system
-Secure a spacious interior space
-
- Sample Up Module-SUM
- Transfer the collected samples to a conveyor ceiling mounted
- Max. load up to 100 samples
- Automatic Stop & Go function with sample weight sensor
- Transfer samples one by one
- Bulk input
-
- Sample Down Module-SDM
- Transfer samples transferred through the conveyor ceiling mounted to the sample basket
- Designed for connection with FAC or for standalone use
- Awareness of the presence or absence of the sample and alarm exceeded capacity
- Height adjustment of sample basket according to user’s demand
-
- Identification / SCM-I
- Sample information recognition device
- Identify information for classification by (examination subdivision)
- Application of barcode system
- Max. Process speed: 1,350 ea/hr.
-
- Classification / SCM-C
- Sample sorting device
- Expansion of sorting concept of existing sample sorting device into conveyor sorting system
-
- LEPAS RMS Module-RMS
- Enable to monitor temperature and humidity in laboratory(alarm function)
- Enable to manage sample safely for accurate test result
-
- Track Camera Module-TCM
- Install cameras at principal part of system
- Secure a view by ceiling-mounted camera system
- Identify problem quickly and action when an error occurs
- 300,000 pixel camera
-
- Stocker / ACS-S
- Input : Max. 700 ea (5 rack)
- Output : Max. 500 ea (5 rack)
- Size(W x D x H)mm : 930 x 1,000 x 1,700
Specification
| Operating software | System Interface software System control software |
| Acceptable tube size | Diameter : 12~18mm, Length : 70~110mm |
| Code for barcode reader | NW-7, ITF, CODE39, CODE128, CODE 39, ITF, Industrial 2of5, Standard 2of5, COOP 2of5, NW-7(Codabar), CODE 128, GS1-128, CODE 93, EAN/UPC, GS1 Databar |
| Sample processing time | Max. 1,380 ea/hr |
| Power | Free voltage, ACS: 50Hz, 60Hz |
